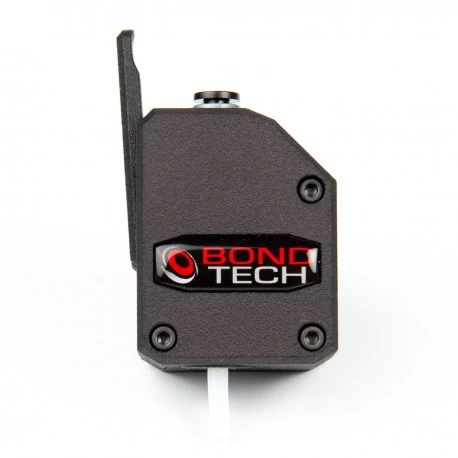

BondTech Creality3D CR-10S PRO Extruder Kit

Built for the Creality3D CR-10S Pro

This extruder upgrade kit is for the Creality CR-10S PRO and will replace the original feeder. This kit contains no motor, the original motor is used.

Bondtech`s Dual Drive Performance

This kit provides a high-performance material feeding system with the ability to print faster with improved quality. The adjustable thumbscrew allows you to fine-tune the force acting on the filament. It allows for a more reliable printing with all sorts of filaments, both stiff and flexible and the DualDrive system ensures that the extruder never loses grip of the filament so grinding, slipping is a thing of the past.

Lower Current Recommended

Due to the gearing ratio, the stepper motor can push filament with such force the Bowden tube can be extruded in case there is a clog. To avoid such damage, we recommend lowering the stepper motor Current to near half the original current. Check the Step By Step Guide that teaches users how to do it.

Bowden Solution

The Bowden tube is securely held in place by the 4mm industry standard integrated push-fit connector.

Reducing Filament Jams

There is now a near to 0,1mm gap between the Bondtech gears and SLS 3D printed housing that avoids filament to jam in there. An additional short PTFE Tube is added between the Extruder and the Filament Sensor to allow for easier filament loading and unloading.

SLS Printed Housing

The housing parts are professionally SLS 3D printed with polyamide for maximum strength and precision.

Firmware Update

The Creality3D Firmware needs to be updated in order to use this Upgrade Kit. The E-steps need to be updated to 415. Please see the installation guide on how to do it that you will find under the tab " Step By Step Guide ".

Article number : EXT-KIT-72

EAN code : 7350011410712

Net weight : 87.5g

Gross weight : 143g

Package Size : 137x94x65mm

Gearing ratio : 3:1

E-steps value : 415

S.M. max Input Current : 0.4A
