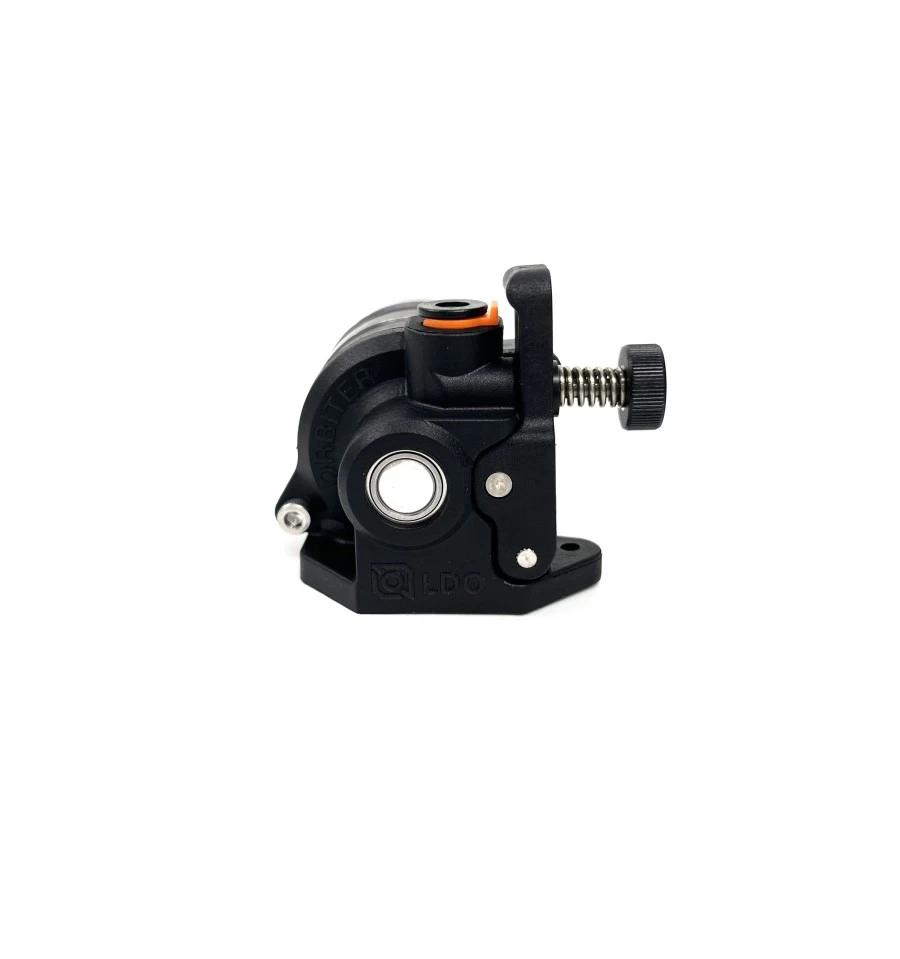

BIQU Orbiter Extruder V2.0 with Motor Double Gear Direct Drive For Voron 2.4 Creality 3D CR-10 Ender3 V2/ PRO 3D Printer Parts

DESIGNED BY DR. R. LORINCZ
MANUFACTURED BY LDO MOTORS

One of the most expected project of 2021, theOrbiter v2.0High precision direct drive extruder using custom manufactured by LDO Motors. This is our finest direct drive extruder system in which we have integrated all what we learned about extruders in the past years.

Features:

1. Shorter drive gears 11mm vs 15mm

2. Hardened filament drive gears manufactured by Bondtech

3. Weight reduced to ~135 grams

4. Smaller more compact dimensions (11.6% shorter)

5. New motor design offers ~40% increase in pushing force in real printing conditions and much improved acceleration performance

6. Flipped drive gears – filament path closer to the extruder center for a more balanced design and perfect fit on delta printers as well

7. Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing experience and extreme wear resistance when using abrasive filaments.

8. High temperature resistant injected housings, GPA12

9. Machined PEEK secondary drive gear sleeve

10. Tension mechanism with grab screw design (Captive Grab Screw)

11. Mounting screws in line with filament exit path – improving housing stiffness and easier mounting

12. Perfectly aligned filament path

13. New smaller and better PTFE input coupler

14. Motor position rotated by additional 10 degrees for easier maintenance and assembly

15. Filament sensor add on with auto load and unload button add on feature

16. And many more small changes to improve mechanical accuracy and design look
